ASTRALPOOL PUMP
CTX High Performance Pump
CODE: 44452-44456
* ราคา R2 คำนวณจาก Price List 2026 (ไม่รวม VAT) บวก 160% แล้วรวม VAT 7% ราคาเว็บไซต์และราคาสมาชิกเป็นไปตามเงื่อนไขที่กำหนด โปรดยืนยันราคาและสต๊อกกับฝ่ายขายก่อนสั่งซื้อ

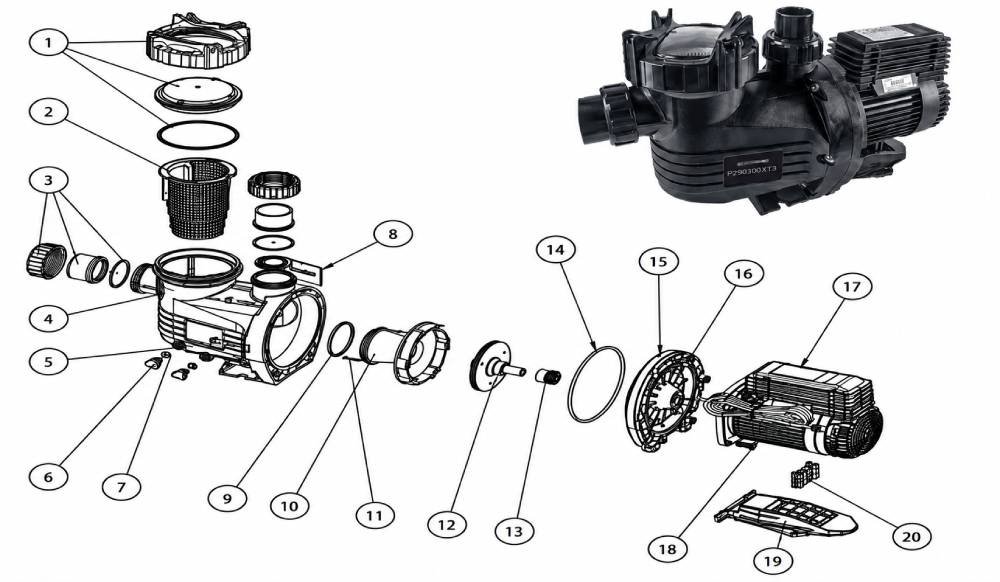

| No. | รหัสสินค้า (Code) | รายละเอียดสินค้า (Description) | แพ็ค (Pack) | Price รวม VAT | ราคาเว็บไซต์ |
|---|---|---|---|---|---|
| 1 | SP40089 |
LID COMPLETE WITH O-RING | 1 | ฿5,564 | ฿3,171 |
| 2 | 40065 |
BASKET | 1 | ฿3,338 | ฿1,903 |
| 3 | 70006 |
LID O-RING | 1 | ฿1,391 | ฿793 |
| 5 | 950919 |
LOCK NUT | 1 | ฿1,669 | ฿951 |
| 6 | 950920 |
2” (50MM) GLUE IN PIPE UNION | 1 | ฿1,669 | ฿951 |
| 7 | 70003 |
O-RING | 1 | ฿835 | ฿476 |
| 8 | 40097 |
WETEND COMPLETE WITH BASKET AND DRAIN PLUGS | 1 | ฿26,429 | ฿15,065 |
| 9 | 40165 |
DIFFUSER RETAINING SCREWS | 1 | ฿556 | ฿317 |
| 10 | 40071A |
DIFFUSER CTX 180,280,360,400 | 1 | ฿6,120 | ฿3,488 |
| 10 | 40071B |
DIFFUSER CTX 500,610 | 1 | ฿6,120 | ฿3,488 |
| 11 | 40060R |
IMPELLER CTX 180 | 1 | ฿3,895 | ฿2,220 |
| 11 | 40060S |
IMPELLER CTX 280 | 1 | ฿3,895 | ฿2,220 |
| 11 | 40060F |
IMPELLER CTX 360 | 1 | ฿4,173 | ฿2,379 |
| 11 | 40060G |
IMPELLER CTX 400 | 1 | ฿3,895 | ฿2,220 |
| 11 | 40060V |
IMPELLER CTX 500 | 1 | ฿3,895 | ฿2,220 |
| 11 | 40060W |
IMPELLER CTX 610 | 1 | ฿3,895 | ฿2,220 |
| 12 | 70022 |
O RING (SEAL PLATE) | 1 | ฿2,782 | ฿1,586 |
| 13 | PS3868 |
MECHANICAL SEAL - BP02-USA-0191 | 1 | ฿5,286 | ฿3,013 |
| 14 | 40098 |
SEAL PLATE | 1 | ฿10,015 | ฿5,709 |
| 15 | 78772 |
SEAL PLATE TO WETEND BOLTS | 1 | ฿1,113 | ฿634 |
| 17 | 40272 |
NUT- BRASS FOR BOLTS | 1 | ฿556 | ฿317 |
| 18 | 71310 |
MOTOR CTX 180 | 1 | ฿48,963 | ฿27,909 |
| 18 | 71313 |
MOTOR CTX 280, 360 | 1 | ฿55,362 | ฿31,556 |
| 18 | 71314 |
MOTOR CTX 400 | 1 | ฿55,362 | ฿31,556 |
| 18 | 71319 |
MOTOR CTX 500 | 1 | ฿76,783 | ฿43,766 |
| 18 | 71331 |
MOTOR CTX 610 | 1 | ฿79,843 | ฿45,511 |
| 19 | 4005002 |
MOTOR FOOT | 1 | ฿2,226 | ฿1,269 |
| 20 | 40056 |
MOTOR FOOT RUBBER INSERT | 1 | ฿1,113 | ฿634 |
| 21 | 40156 |
BOLTS- MOTOR TO SEAL PLATE | 1 | ฿835 | ฿476 |
| Not Shown | LABEL264 |
CTX LABEL | 1 | ฿1,669 | ฿951 |
| Not Shown | 7820702 |
DRAIN PLUG | 1 | ฿1,947 | ฿1,110 |
| Not Shown | 78103 |
O-RING | 1 | ฿556 | ฿317 |
| Not Shown | 598770 |
CHECK VALVE ASSEMBLY | 1 | ฿1,669 | ฿951 |
| Not Shown | INST243 |
INSTRUCTION MANUAL | 1 | ฿1,391 | ฿793 |
| Not Shown | 78303 |
COMPONENT BAG | 1 | ฿3,060 | ฿1,744 |
